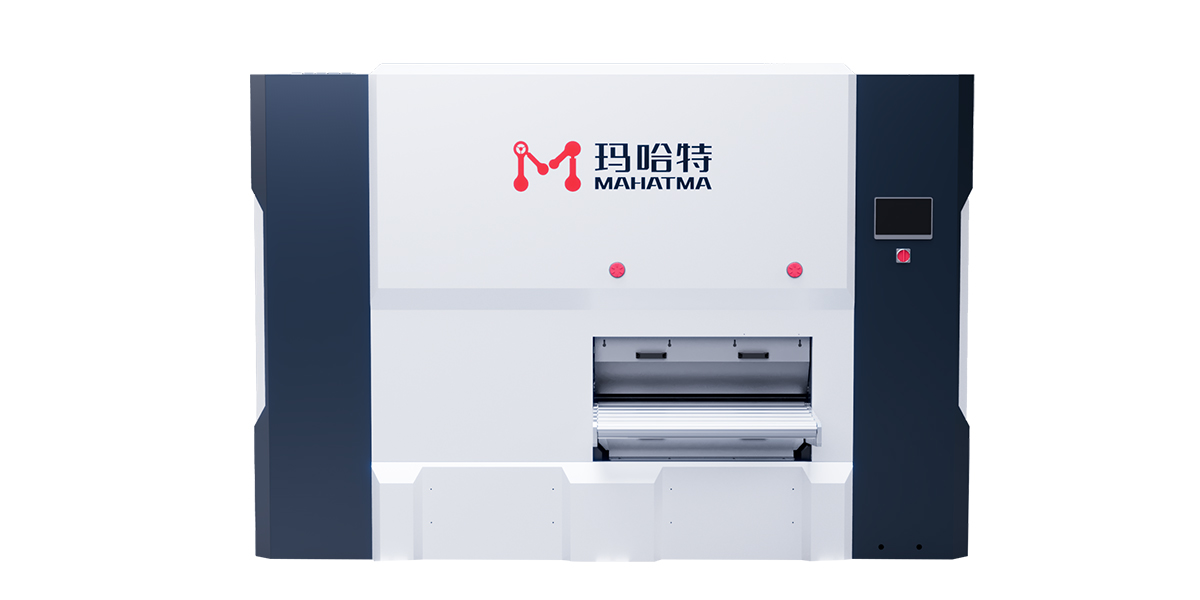

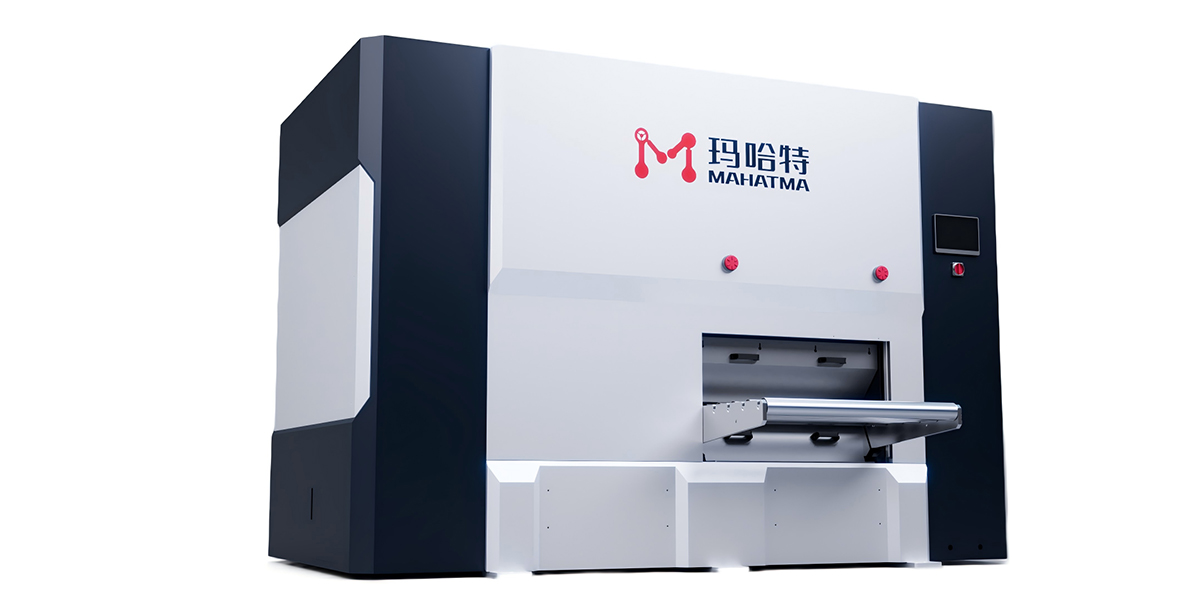

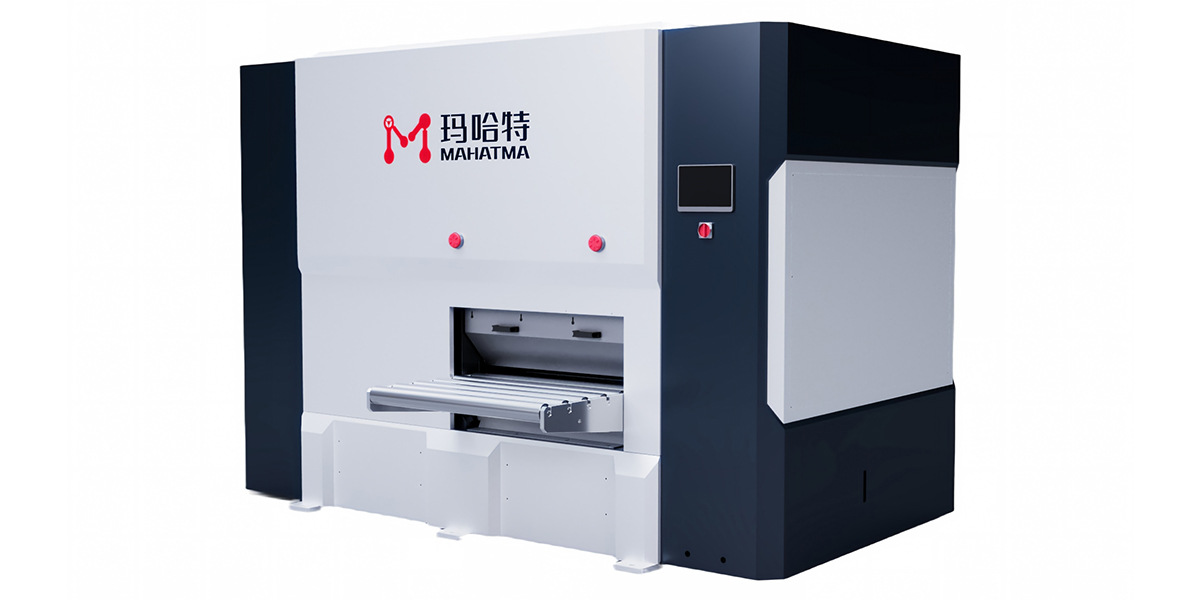

MAHATMA CNC Precision Leveling Machine using German imported hydraulic system and numerical control calculation system, powerful hydraulic pressure makes the gap between the upper and lower correction roller (mechanical dead limit) always remain unchanged, the overall deformation of the machine working to a minimum, to ensure that a large number of parts correction effect is consistent. Parallel multi-roll, hydraulic locking, intensive support and other technologies, to meet the high precision flat parts leveling requirements.
Our CNC leveling machines deliver a significant upgrade over traditional manual leveling methods. Equipped with an advanced control system, the machine supports process parameter storage, quick recall, and on‑screen editing, ensuring consistent and repeatable leveling performance. Built‑in misoperation detection and warning functions enhance operational safety and reliability.
A 10-inch high‑precision touch screen provides intuitive operation and real‑time status display. Operators can set inlet and outlet reduction values based on plate thickness, width, material strength, or select from existing database parameters. This enables automatic electric adjustment of work‑roll entry and exit clearance, with optional manual fine‑tuning for precision correction.
By replacing manual adjustments with intelligent CNC control, the machine greatly improves production efficiency, reduces operator dependency, and ensures stable leveling quality. It is ideal for sheet metal applications requiring high flatness, straightness, and surface consistency.
| Machine Model | MHTM15 | MHTM30 | MHTM40 | MHTM50 | MHTM60 | MHTM80 | MHTM100 | MHTM120 | MHTM150 | MHTM200 |
| Roller Diameter(mm) | φ15 | φ30 | φ40 | φ50 | φ60 | φ80 | φ100 | φ120 | φ150 | φ200 |
| Roller Number | 25 | 23 | 21 | 19 | 19 | 19 | 19 | 19 | 15/19 | 15/19 |
| Speed(m/min) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Leveled Width(mm) | <1000 | <2000 | <2000 | <2000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3500 |
| Rated Thickness(mm） | 0.08~1 | 0.5~3 | 0.6~4 | 0.8~5 | 1~8 | 2~10 | 3~12 | 4~20 | 6-30 | 8~30 |
| Max-Thickness(mm) | 2 | 4 | 6 | 8 | 12 | 16 | 20 | 25 | 30 | 40 |
| Short-Workpiece(mm) | 30 | 60 | 75 | 90 | 100 | 130 | 160 | 190 | 240 | 310 |
| Applicable Object | Laser cutting part,Punching & Perforated sheet | |||||||||
CNC leveling machines are widely used in sheet‑metal fabrication industries that require high flatness and stable dimensional accuracy. They effectively eliminate warpage, waves, twisting, and residual stress caused by laser cutting, stamping, and perforation processes. Typical applications include laser‑cut parts, stamped components, perforated sheets, automotive body and structural parts, electrical enclosures, aerospace lightweight alloy components, machinery frames, metal furniture, and EV battery trays. These scenarios also match long‑tail search intent such as “leveling machine for laser‑cut parts,” “how to flatten perforated metal sheets,” and “sheet‑metal leveling for the automotive industry.”
Automatic sheet metal leveling machines support a wide range of metallic materials, including stainless steel (304/316/201), aluminum alloys (5052/6061/7075), carbon steel, mild steel, high‑strength steel, copper, brass, and spring steel. With multi‑roller leveling and CNC servo control, the machine delivers stable results across different hardness levels and thicknesses—capable of handling both high‑strength structural parts and soft materials without surface scratches.
MAHATMA is a specialized company dedicated to the research, development, manufacturing, and sales of CNC leveling machines and hydraulic leveling machines, manual leveling machines. With years of experience in the field of metal sheet leveling equipment, we not only have a well-established manufacturing system but also offer professional on-site installation services at customer locations.
