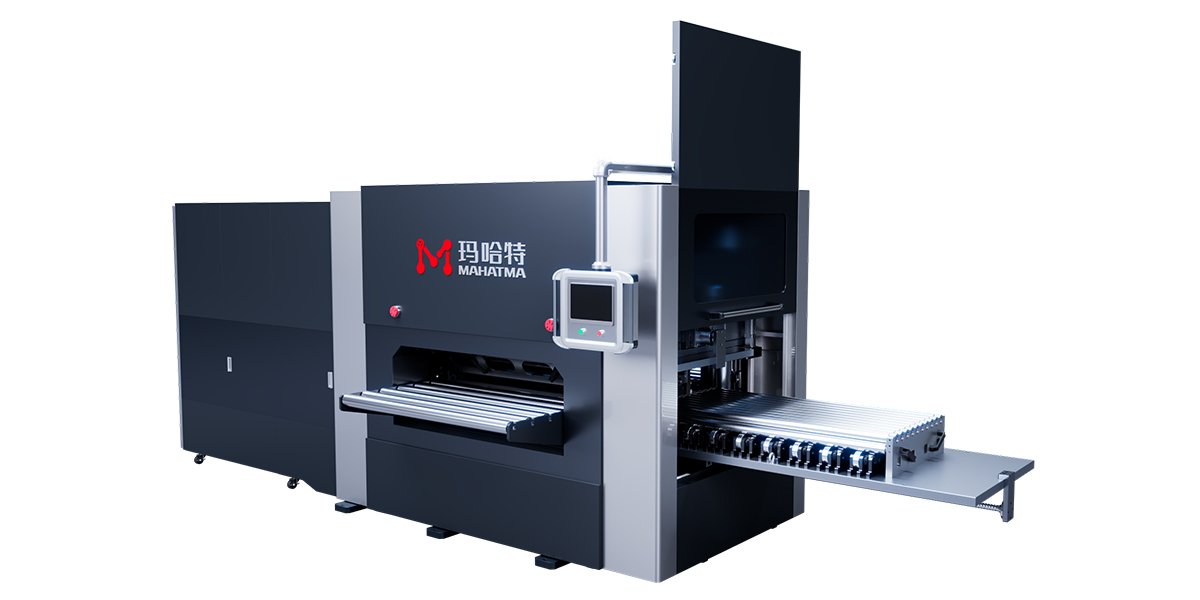

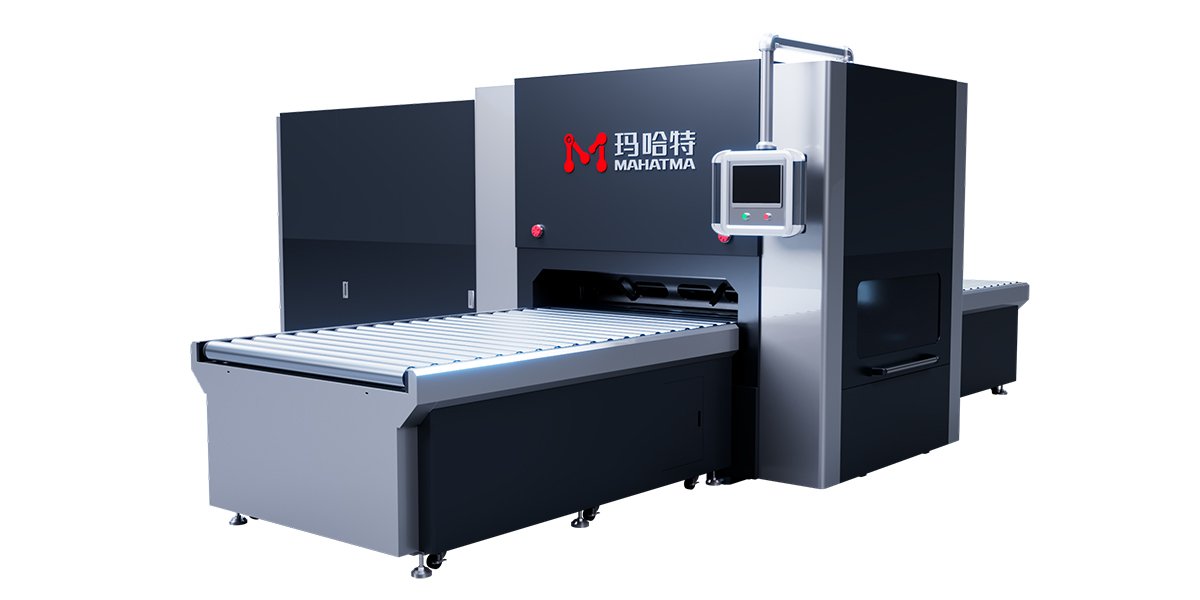

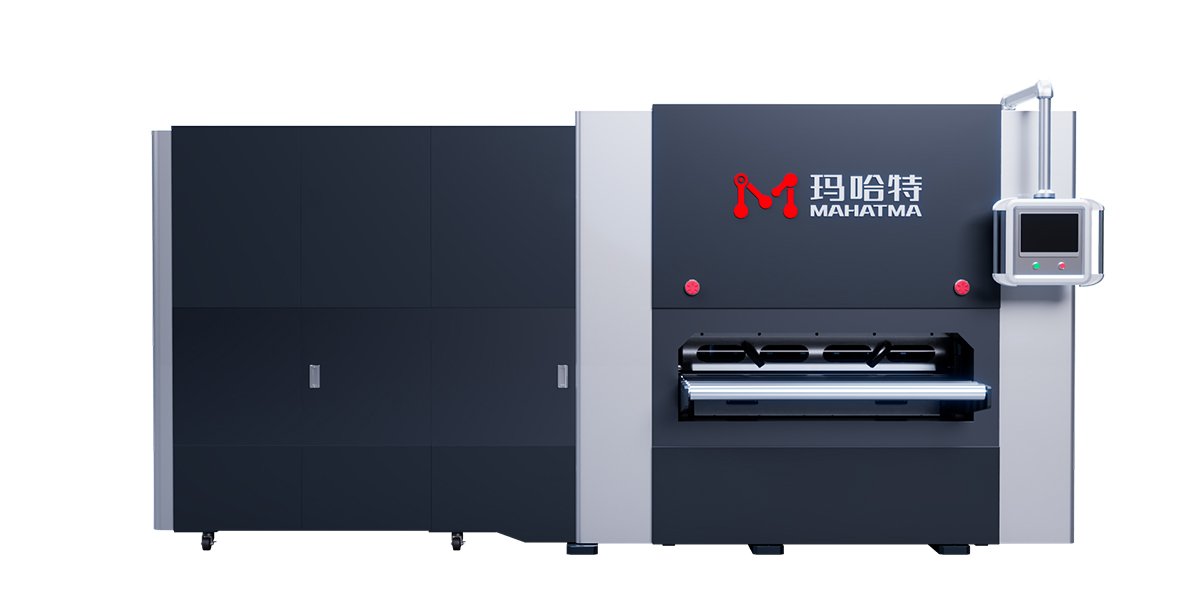

This series of hydraulic leveling machines integrates advanced hydraulic and CNC technology imported from Germany, combining the precision of servo control with the robust power of hydraulic drive. This synergy delivers exceptional performance when processing large, thick, and high‑precision materials.
The system maintains a constant roller gap to minimize deformation and ensure stable, repeatable leveling results. Parallel multi‑roller configurations, hydraulic locking, and dense support structures provide the rigidity required for high‑accuracy leveling applications.
With a compact footprint, high processing precision, and quiet operation, the equipment offers performance comparable to imported machines—yet with lower cost and faster service response. Micron‑level flatness monitoring enables rapid and accurate quality control throughout the process.
| Machine Model | MHTR15 | MHTR30 | MHTR40 | MHTR50 | MHTR60 | MHTR80 | MHTR100 | MHTR120 | MHTR150 | MHTR200 |
| Roller Diameter(mm) | φ15 | φ30 | φ40 | φ50 | φ60 | φ80 | φ100 | φ120 | φ150 | φ200 |
| Roller Number | 31 | 23 | 23 | 23 | 21 | 15/19 | 15/19 | 15/19 | 15/19 | 15/19 |
| Speed(m/min) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
| Leveled Width(mm) | <1000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3000 | <3500 |
| Rated Thickness(mm) | 0.08~1 | 0.5~3 | 0.6~4 | 0.8~5 | 1~8 | 2~10 | 3~12 | 4~20 | 6~25 | 8~40 |
| Max-Thickness(mm) | 2 | 4 | 6 | 8 | 12 | 16 | 20 | 25 | 30 | 40 |
| Short-Workpiece(mm) | 30 | 60 | 75 | 90 | 100 | 130 | 160 | 190 | 240 | 310 |
| Applicable Object | Laser cuting parts,Punching &Perforated sheet | |||||||||
Engineered for large thick steel plates, non‑ferrous metals, mirror‑finish sheets, sheet metal, laser‑cut parts, and flame‑cut components, this hydraulic leveling system delivers exceptional surface quality and high‑precision flatness. The advanced four‑roll or six‑roll leveling structure ensures uniform roller force and superior rigidity, eliminating roller marks and effectively correcting complex deformation issues that traditional levelers cannot resolve. This design significantly expands material compatibility and enhances overall processing efficiency.
With its high stability, strong hydraulic power, and micron‑level accuracy, the hydraulic leveler has become the preferred solution for industries requiring high‑precision leveling, including new energy, military manufacturing, heavy machinery, automotive and truck production, construction, shipbuilding, aerospace, and metal fabrication. Its ability to handle challenging materials and deliver consistent flatness makes it an ideal choice for manufacturers seeking reliable, high‑performance leveling equipment.
A hydraulic part leveler should be selected based on material thickness, hardness, and required flatness accuracy. Thick steel plates, non‑ferrous metals, and precision sheet components demand corresponding roller diameters, hydraulic pressure levels, and multi‑roller configurations to ensure sufficient penetration and stress relief. Four‑roll, six‑roll, or dense multi‑roller structures provide varying rigidity and bending cycles, enabling stable correction of residual stress and eliminating roller marks. For applications requiring micron‑level flatness—such as aerospace, new energy, military manufacturing, heavy machinery, and automotive production—models equipped with servo control, hydraulic locking, constant roller‑gap technology, and real‑time flatness monitoring deliver the consistency and precision needed for high‑performance industrial workflows.
MAHATMA is a specialized company dedicated to the research, development, manufacturing, and sales of leveling machines. With years of experience in the field of metal sheet leveling equipment, we not only have a well-established manufacturing system but also offer professional on-site installation services at customer locations.
MAHATMA offers high-precision hydraulic leveling machines and CNC sheet metal levelers. Engineered with German servo technology for laser-cut, punched, and perforated sheets. Inquire today for custom solutions.
